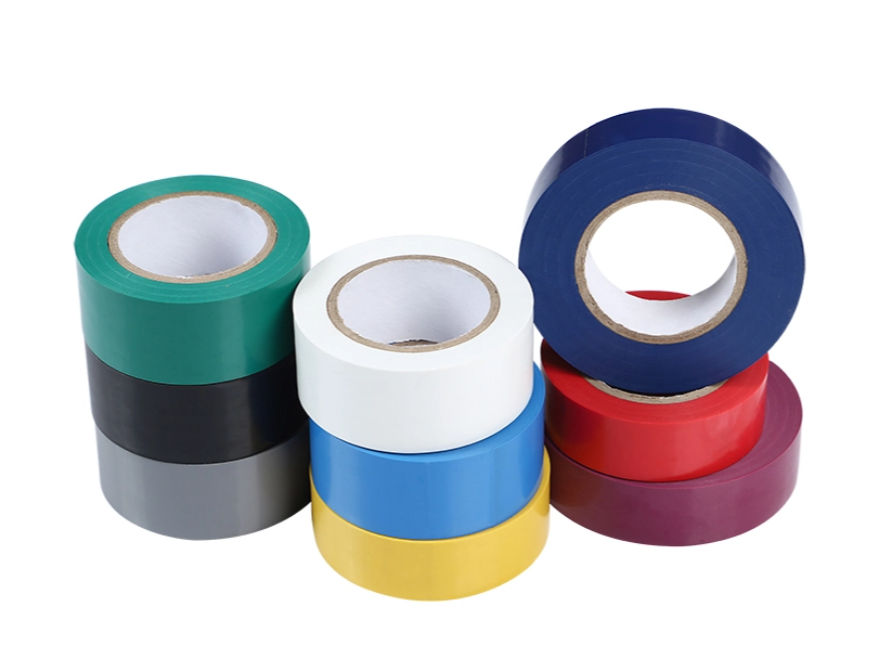

This PVC electrical insulation tape is manufactured in compliance with European safety and environmental regulations, including REACH and RoHS. It consists of soft PVC film and rubber-based pressure-sensitive adhesive, designed for electrical applications requiring insulation and cable protection. The tape supports voltage resistance up to 600V and offers clean removal without leaving residue. It is suitable for commercial procurement and industrial applications.
This tape meets EU standard requirements for electrical safety. It exhibits self-extinguishing properties after flame removal, contributing to enhanced safety in electrical installations. The REACH and RoHS compliance ensures that the product adheres to European regulations regarding restricted substances, making it acceptable for use in various commercial operations across the European Union.
Constructed from soft PVC film, the tape provides flexibility for wrapping around irregular surfaces. The rubber-based pressure-sensitive adhesive offers adhesion to steel of ≥ 1.5 N/cm. The tape has a tensile strength of ≥ 15 N/cm and elongation of ≥ 150%, allowing it to conform to different shapes and withstand mechanical stress during application and use.
The tape functions effectively in both indoor and outdoor environments. It is used in wire harnessing, primary cable insulation, and general electrical maintenance tasks. It can be applied at temperatures ranging from +10°C to +40°C and operates within a temperature range of 0°C to 80°C, with short-term exposure to higher temperatures possible.
Parameter | Value |
Product Type | PVC Electrical Insulation Tape |
Standard | EU Standard / REACH & RoHS Compliant (if applicable) |
Material | Soft PVC film + rubber-based pressure-sensitive adhesive |
Thickness | 0.10mm – 0.20mm (customizable) |
Width | 12mm / 15mm / 18mm / 19mm / 25mm (customizable) |
Length | 10m / 20m / 25m / 33m (customizable) |
Color | Black / White / Red / Blue / Yellow / Green (optional) |
Tensile Strength | ≥ 15 N/cm (typical range) |
Elongation | ≥ 150% |
Adhesion to Steel | ≥ 1.5 N/cm |
Voltage Resistance | Up to 600V (typical electrical insulation use) |
Temperature Resistance | 0°C to 80°C (short-term higher resistance possible) |
Flame Retardant | Self-extinguishing after flame removal |
Application Temperature | +10°C to +40°C |
Storage Conditions | Cool, dry place, away from direct sunlight |
This tape complies with EU standard electrical safety requirements and is REACH and RoHS compliant where applicable. These certifications confirm that the product meets European regulations for electrical safety and restricted substances.
Yes, thickness, width, and length can be customized according to specific requirements. Standard options include thickness from 0.10mm to 0.20mm, width from 12mm to 25mm, and length from 10m to 33m.
The tape should be stored in a cool, dry place away from direct sunlight. Proper storage helps maintain the adhesive properties and overall performance of the product.
Yes, the tape is designed for both indoor and outdoor electrical use. It operates within a temperature range of 0°C to 80°C and provides abrasion resistance for various environmental conditions.
The tape is formulated for clean removal without leaving sticky residue on most surfaces, which facilitates maintenance and rework operations in industrial settings.
