| Quantity: | |
|---|---|

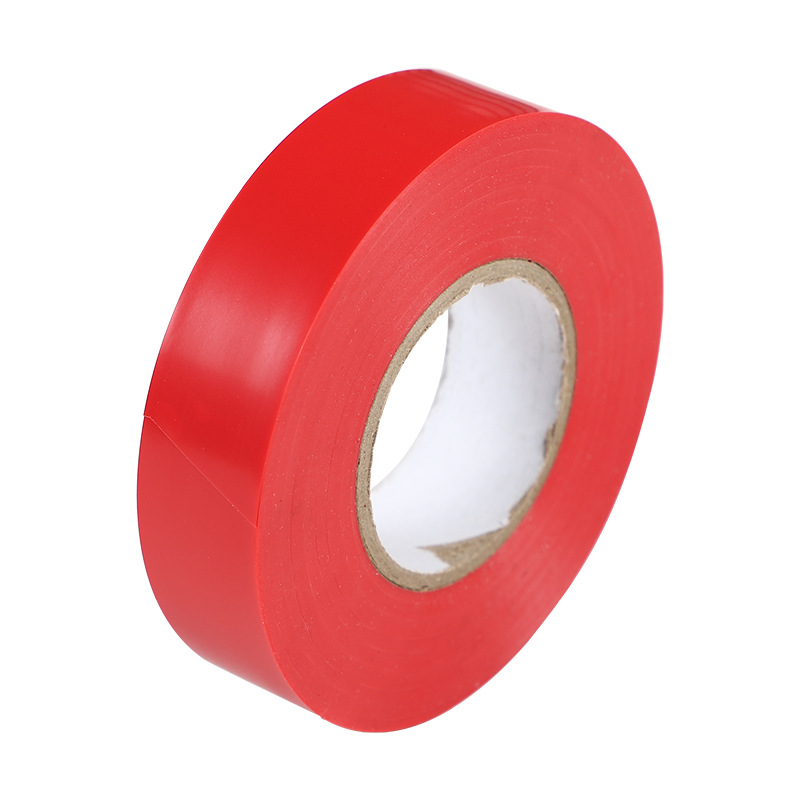

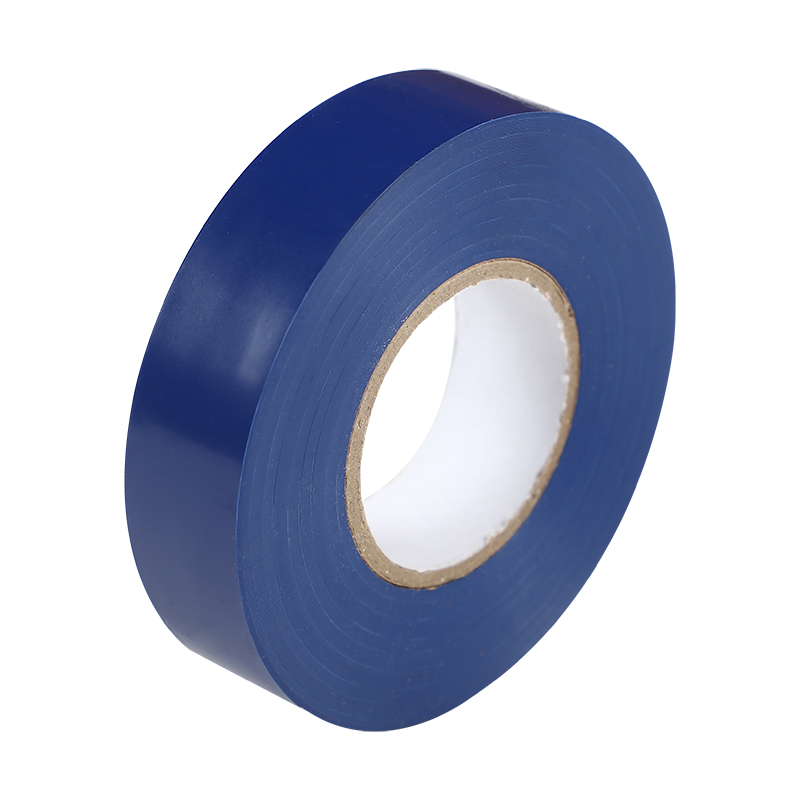

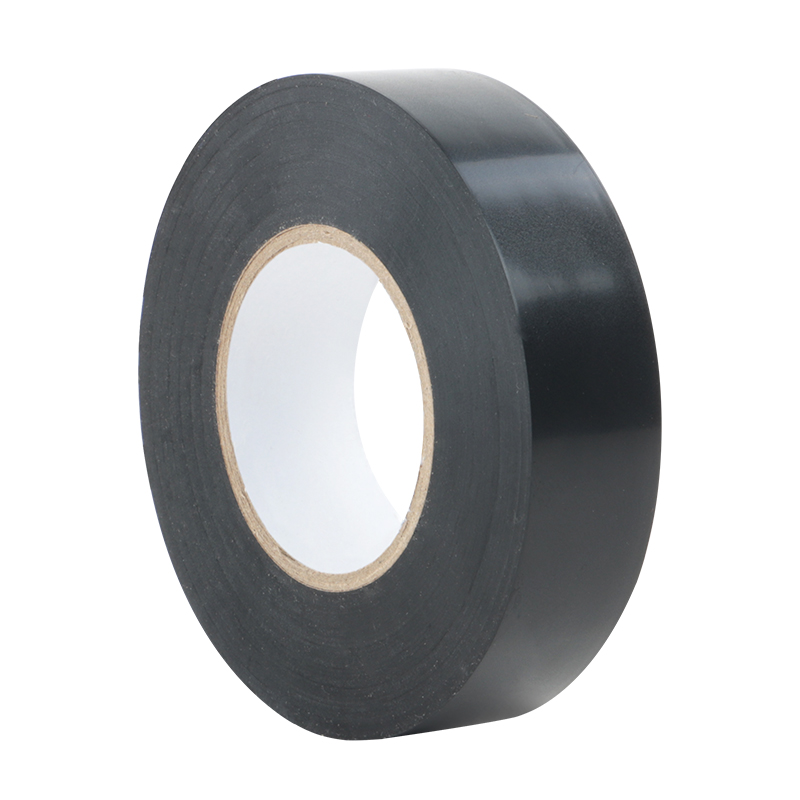

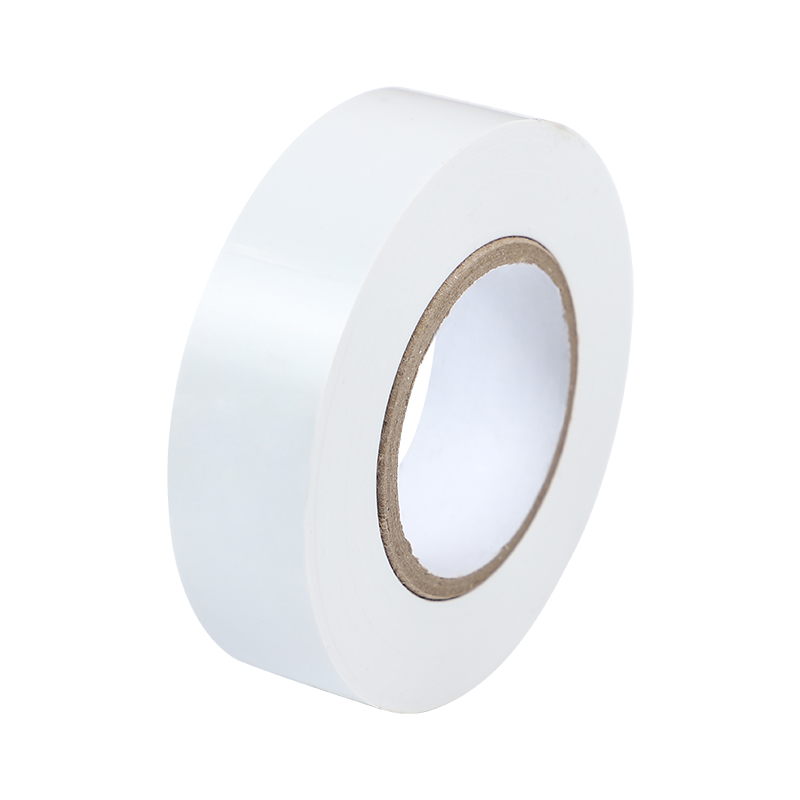

Premium PVC electrical insulation tape is designed for electrical insulation and industrial protection applications. It offers strong adhesion, good flexibility, and reliable resistance to corrosion for stable performance in different working conditions.
It is suitable for wire bundling, cable wrapping, splicing, repairing, and protection of electrical components. The tape conforms well to uneven surfaces and provides effective insulation performance in general electrical applications. It complies with REACH requirements.
Strong adhesion for secure wrapping
Excellent flexibility and elongation
Flame retardant performance
High electrical insulation
Corrosion resistant
REACH compliant
Electrical wire insulation
Cable & wire harness wrapping
Electrical maintenance and repair

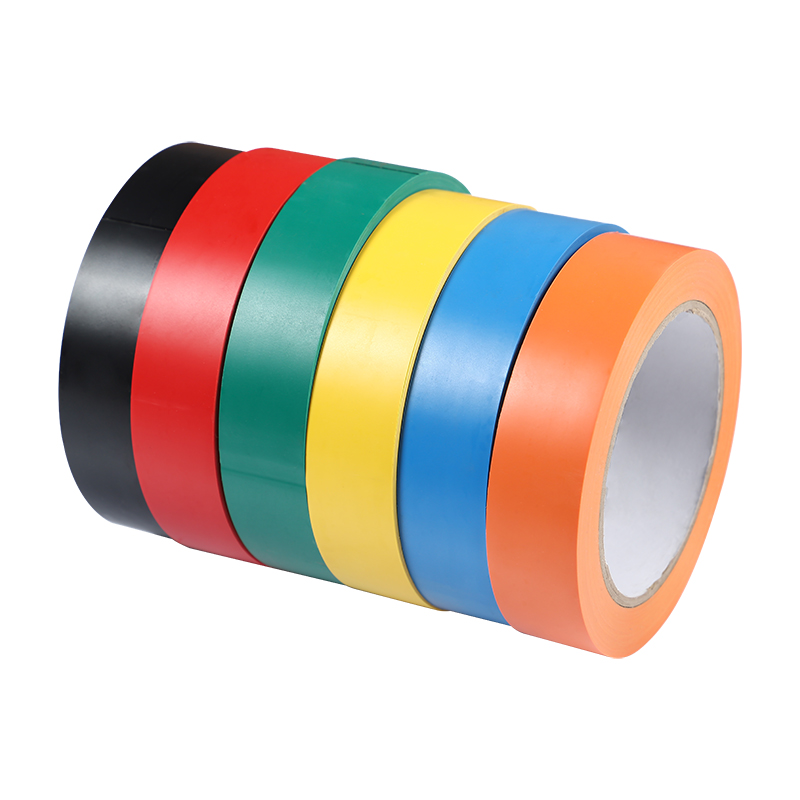

Color coding and identification
Industrial protection applications
Item | Unit | Typical Range |
Thickness | mm | 0.13/0.15/0.18 |
Adhesion to steel | N/cm | ≥1.8 |
tensile strength | N/cm | ≥18 |
Elongation at break | % | ≥180 |
Dielectric strength | KV/mm | ≥40 |
Flame retardancy | S | ≤5 |
Temperature Resistance | ℃ | -10°C to 105°C |
Environment standard | / | REACH |
